संरचनागत इंजीनियरिंग

आईआईटी जोधपुर के सिविल और इंफ्रास्ट्रक्चर इंजीनियरिंग विभाग ने स्ट्रक्चरल इंजीनियरिंग डोमेन में एक अत्याधुनिक प्रयोगशाला स्थापित करने की योजना बनाई है। इसके अलावा, यह स्ट्रक्चरल हेल्थ मॉनिटरिंग प्रयोगशाला, स्ट्रक्चरल मॉडलिंग और सिमुलेशन प्रयोगशाला, जोखिम, विश्वसनीयता और स्टोकेस्टिक मॉडलिंग प्रयोगशाला, पवन ऊर्जा और इंजीनियरिंग प्रयोगशाला, स्टील और समग्र संरचना प्रयोगशाला और भूकंप इंजीनियरिंग प्रयोगशाला जैसी विभिन्न थीम आधारित प्रयोगशालाएँ स्थापित करने की भी योजना बना रहा है। इसमें परिवेशी कंपन का अध्ययन करना, विभिन्न स्थिर और गतिशील लोडिंग स्थितियों के तहत संरचनात्मक तत्वों और संयोजनों के मॉडल/प्रोटोटाइप पर प्रयोगात्मक अध्ययन करना और सामग्रियों के संरचनात्मक व्यवहार और गुणों के परीक्षण और शोध के लिए तकनीकी सेवाएँ प्रदान करना शामिल है।

इन प्रयोगशालाओं का उद्देश्य संरचना इंजीनियरिंग और अंतःविषय डोमेन में अनुसंधान और शिक्षण पारिस्थितिकी तंत्र को बढ़ावा देना है। वर्तमान में, स्ट्रक्चरल इंजीनियर प्रयोगशाला गैर-विनाशकारी परीक्षण से संबंधित प्रयोगों को पूरा करती है जैसे कि रिबाउंड हैमर, अल्ट्रासोनिक पल्स वेलोसिटी, रीबार लोकेटर, हाफ-सेल पोटेंशियोमीटर, मैक्सवेल पारस्परिक प्रमेय उपकरण, दो और तीन हिंग वाले आर्च उपकरण, सस्पेंशन ब्रिज उपकरण, पिन जॉइंटेड ट्रस उपकरण, विक्षेपित बीम उपकरण के लोचदार गुण, स्तंभों और स्ट्रट्स उपकरण का व्यवहार, लोचदार रूप से युग्मित बीम उपकरण और असममित झुकने वाले उपकरण। वर्तमान में, प्रयोगशाला दो सर्वो-नियंत्रित हाइड्रोलिक परीक्षण मशीनों, एक 1000 kN यूनिवर्सल परीक्षण मशीन (UTM), और एक 3000 kN संपीड़न परीक्षण मशीन (CTM) से सुसज्जित है। इसके अतिरिक्त, प्रयोगशाला में 8-चैनल यूनिवर्सल एम्पलीफायर HBK मेक, एक 100 kN फ्लेक्सचर टेस्टिंग मशीन (FTM), और स्नातक स्तर के प्रयोगशाला कार्य के लिए उपयुक्त कई अन्य उपकरण हैं। प्रयोगशाला में संख्यात्मक मॉडलिंग और सिमुलेशन के लिए ABAQUS, STAAD Pro और SAP जैसे कई सॉफ़्टवेयर प्लेटफ़ॉर्म भी हैं।

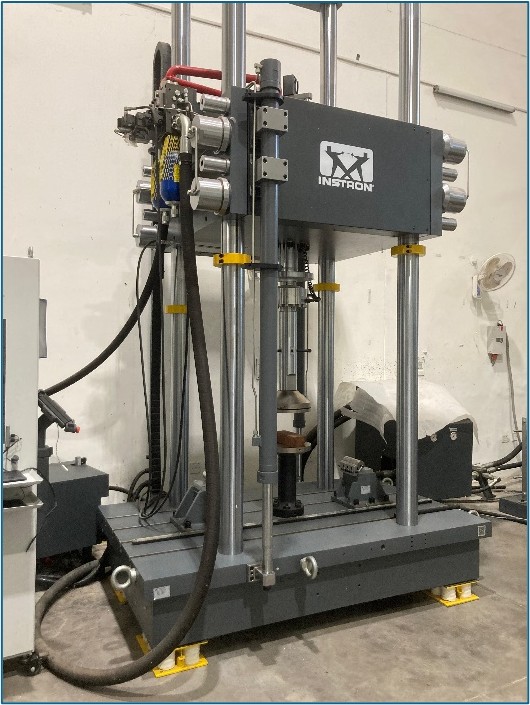

500kN Compression Testing Machine

The 500 kN High Force Fatigue Testing Machines are servo-hydraulic systems equipped with a large T-slot bed and a high-stiffness four-column load frame, specifically designed for high-force testing of materials and components. These machines are widely used for both static and fatigue testing in applications such as tension/compression fracture, fatigue crack propagation, high-cycle fatigue (HCF), elastomer property evaluation, and flexural strength analysis. Common test specimens include metals, wire ropes, rebar, rails, concrete, and aerospace components. Operating in stroke control mode, the system maintains the load within user-defined limits during specimen loading. Key features include a 150 mm (±75mm) actuator stroke with 0.1 mm resolution, capability for cyclic operation, customizable hydraulic and dynamic performance to suit specific applications, and an adjustable upper crosshead with hydraulic lifts and locks for quick and easy daylight adjustment.

100 kN Fatigue Testing Machine

The 100 kN Series servo-hydraulic test systems are designed to meet nearly all requirements for testing the strength, durability, and toughness of metals, composites, and plastics. These systems are supported by a wide range of transducers, application software, and accessories to accommodate standard testing procedures. Key features include a double-acting servo- hydraulic actuator with force capacities up to ±600 kN (±22 kip), a high-stiffness, precision-aligned, self-reacting twin- column load frame with the actuator positioned in the lower base or top crosshead, and a usable stroke length of 150 mm (±75mm). The system is rated for cyclic operations and includes mechanical, hydraulic, and pneumatic anti-vibration pads for enhanced stability. Users can tailor the hydraulic configuration and dynamic performance to specific application needs. The adjustable upper crosshead is equipped with hydraulic lifts and locks for easy daylighting. The system is compatible with a broad selection of grips, fixtures, chambers, video extensometers, protective shields, and other accessories.

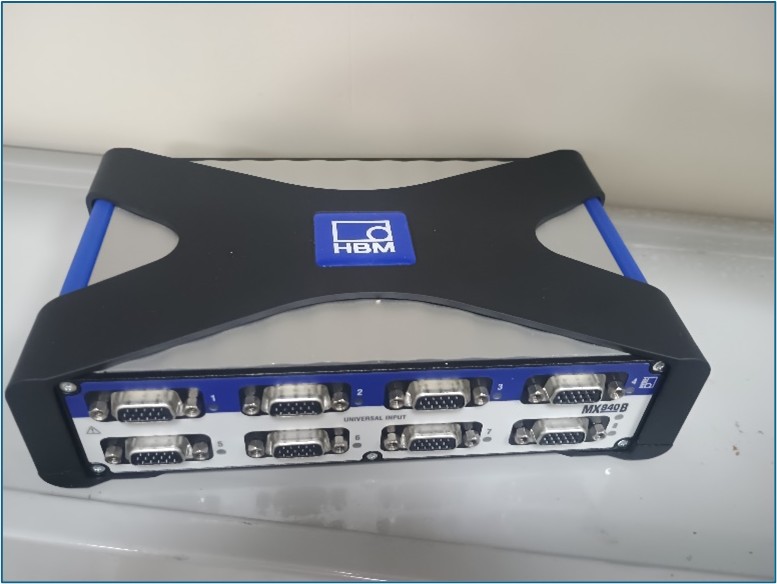

Universal 8 Channel Data Acquisition System (DAQ)

The HBM QuantumX MX840B is an advanced 8-channel universal data logger that allows the connection of sensors and transducers based on 17 different technologies across all its channels. With the support of HBM’s innovative “Plug & Measure” technology, the module automatically recognizes connected transducers, streamlining setup and ensuring accurate measurements. Each of the eight channels can accommodate a wide range of sensor types, including strain gauges in half or full bridge configurations (DC or CF with 4.8 kHz), voltage inputs (100 mV, 10 V, and 60 V), current- fed piezos (IEPE/ICP), piezoresistive full bridges, thermocouples (types K, N, R, S, T, B, E, J, and C), resistance thermometers (PT100, PT1000), resistance up to 5000 Ohm, potentiometric transducers, inductive half or full bridge sensors including LVDTs, and current inputs (±20 mA). Additionally, up to four channels support rotary encoders, counters, frequency/rpm measurements, and the SSI protocol. The module features a high-resolution 24-bit analog-to-digital converter and offers a sample rate of up to 40 kS/s per channel, complemented by active low-pass filters. Renowned for its precision, the MX840B achieves an accuracy class of up to 0.05%, making it ideal for high-performance measurement applications.

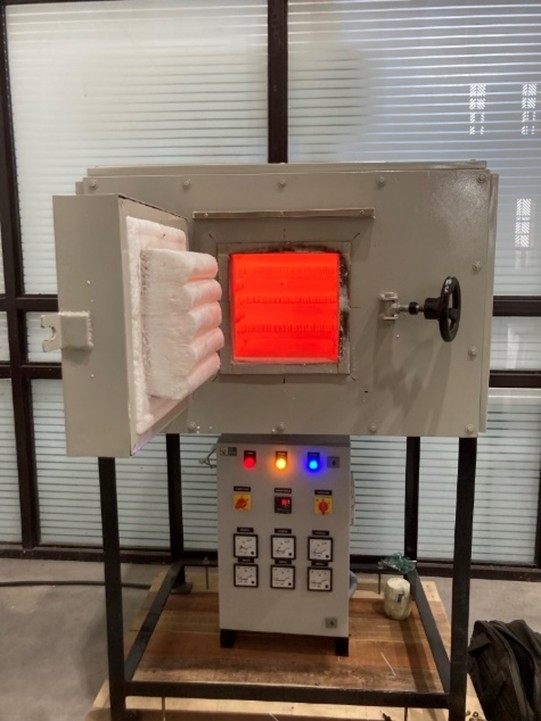

Thyristor Based Furnace

The horizontal muffle furnace is a high- temperature thermal processing unit available in the lab, designed for material heating, sintering, and thermal treatment applications. It features a robust construction with a hinged door for safe and easy access and is mounted on a sturdy mild steel stand with the control panel positioned below for user convenience. The furnace offers a compact working chamber of 250 mm × 250 mm × 300 mm and can operate at temperatures up to 1100°C. It uses durable APM grade Kanthal coils as heating elements and a K-type thermocouple to ensure precise temperature monitoring with ±2°C accuracy. A programmable PID controller (1 program × 9 steps) enables accurate temperature control, while a solid-state thyristor regulates power. The chamber is well insulated with a combination of high-temperature bricks and zirconia-blended alumina ceramic fiber blankets, enhancing thermal efficiency and safety. The system operates on a 3-phase power supply (400–415 V, 20 A) and consumes between 6 to 7.5 kW. Additional features include analog voltage and current meters, high-quality switch gears, and safety mechanisms like a slow-blow fuse and user-settable over-temperature protection.

सुदृढीकरण बार लोकेटर गैर-विनाशकारी परीक्षण उपकरण (प्रोफोमीटर 630 एआई) हाफ सेल पोटेंशियरमीटर कंक्रीट सतह प्रतिरोधकता मीटर


रैपिड क्लोराइड पारगम्यता उपकरण अल्ट्रा सोनिक पल्स वेलोसिटी मीटर 8 चैनल यूनिवर्सल एम्पलीफायर


तीन हिंगेड आर्क उपकरण संपीड़न परीक्षण मशीन 3000kN पोर्टल फ़्रेम उपकरण


पोर्टेबल_3डी_ट्रस कंक्रीट वाइब्रेशन टेबल सीमेंट क्यूब वाइब्रेटिंग मशीन


यूनिवर्सल टेस्टिंग मशीन फ्लेक्सचर टेस्टिंग मशीन एनालॉग प्रेशर गेज और प्रेशर कंट्रोलर के साथ सीमेंट आटोक्लेव


स्थिरता कक्ष थाइरिस्टर आधारित_भट्ठी त्वरित इलाज टैंक आधा सेल पोटेंशियोमीटर


कंक्रीट पारगम्यता उपकरण
