XRD(Powder)

XRD(Powder)

XRD(Powder)

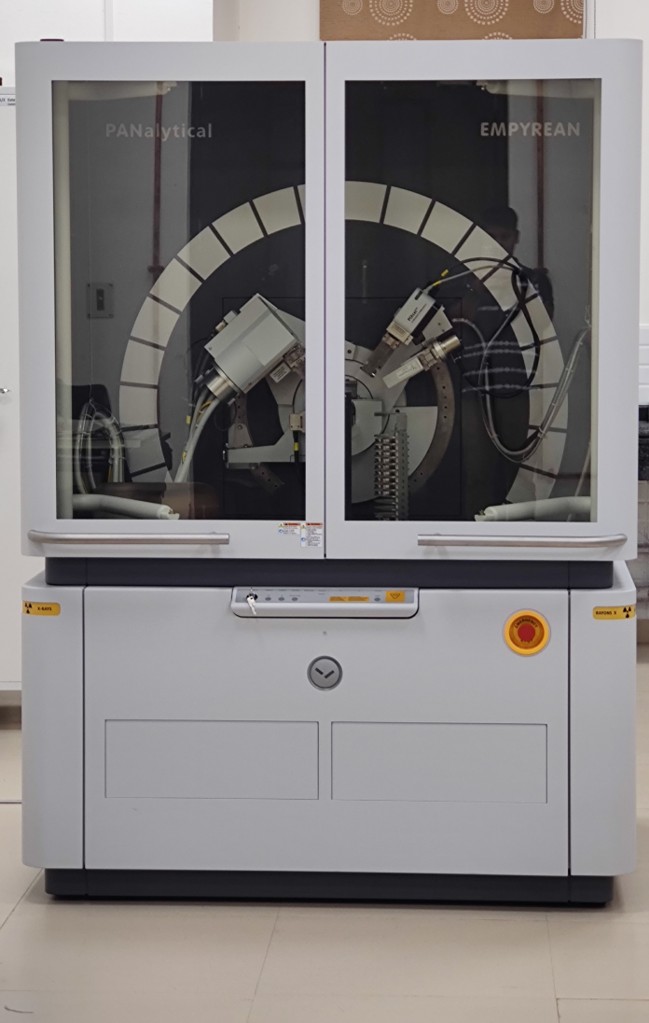

Make: Malnvern PANanalytical

Model: Empirian

Capabilities

Specifications

  • Water-cooled Ceramic Cu X-ray tube: Operating conditions: 45 kV and 40 mA
  • Detectors: (1) PIXcel 1D Medipix3 Detector: All powder/bulk samples and (2) Proportional Counter:Used for thin film analysis
  • Goniometer: 2θ angle range: 10° to 120°
  • Beam Optics: Incident Beam Prefix Modules and Bragg – Brentano HD (BBHD)
  • Diffracted Beam Prefix Modules: PIXcel 1D-Medipix3 FASS and
  • Parallel Plate Collimator (PPC)
  • Software
  • High Score Plus – for analysis and interpretation
  • COD Database – for phase identification using crystallographic data


Application:

  • Determines crystalline phases in materials to identify compounds in minerals, ceramics, metals, and polymers.
  • Estimates average crystallite size and lattice strain in nanomaterials and powders.
  • Measures unit cell dimensions and detects structural changes due to doping, temperature, or pressure variations.
  • Chemical composition, Phase identification & quantification, Crystallite size, Lattice strain, Lattice parameters

Sample Requirement

Content will be updated soon.

Charges

Academics(Rs)+18% GST Industry(Rs)+18% GST
 400/Sample 600/Sample

Publications

Content will be updated soon..

Contact Us

Name: Dr Jayita Sarkar

Designation: Snr Scientific Officer

Phone:0291 280 1343

Email:jsarkar[at]iitj[dot]ac[dot]in

Name: Dr Saloni Sharma

Designation: Scientific Officer

Phone:0291 280 1347

Email:saloni[at]iitj[dot]ac[dot]in

Name: Mr lalit Mohan

Designation: Junior Assistant

Phone:0291 280 1344

Email:
