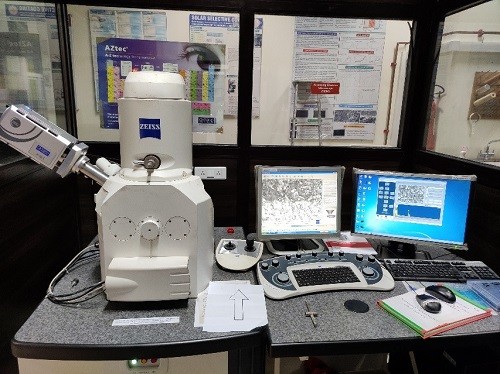

Scanning Electron Microscope With Edax

Scanning Electron Microscope With Edax

Scanning Electron Microscope With Edax

Make: Carl Zeiss

Model: EVO 18

Capabilities

Specifications

  • Filament: Tungsten
  • Secondary e-image resolution: 3 nm 30 Kv (Standard Sample)
  • Tilt: -10 to + 90 Degree
  • EHT: 30kV
  • Magnification: Up to 50K ~ 100K (Depends on sample)
  • Process Capabilities: Imaging Modes: Surface & Cross-Sectional,
  • Sample Holder: Maximum 9 stubs (~1 CM Dia.) can be mounted
  • EDX
  • Elemental Mapping


Application:

  • SEM analyzes surface morphology and microstructures of metals, ceramics, and composites.
  • It helps find out the particle size in nanomaterials.
  • Corrosion Evaluation
  • Film Topography Measurement
  • Striation measurement for high-cycle fatigue fractures.
  • Surface contamination analysis.
  • Surface contamination analysis
  • Laser & weld evaluation.
  • Printed and integrated circuit analysis.
  • EDX determines the elemental composition and distribution in metals and alloys to assess quality and uniformity.
  • This also identifies contaminants or material inconsistencies in microchips and circuit boards

Sample Requirement

Sample should be dry and conducting . In case of Non conducting samples metal coating is rquired

Charges

Academics(Rs)+18% GST Industry(Rs)+18% GST
 300/hr (Max 4 samples) 1000/hr (Max 4 samples)

Publications

Content will be updated soon..

Contact Us

Name: Dr Jayita Sarkar

Designation: Snr Scientific Officer

Phone:0291 280 1343

Email:jsarkar[at]iitj[dot]ac[dot]in

Name: Dr Saloni Sharma

Designation: Scientific Officer

Phone:0291 280 1347

Email:saloni[at]iitj[dot]ac[dot]in

Name: Mr lalit Mohan

Designation: Junior Assistant

Phone:0291 280 1344

Email:
