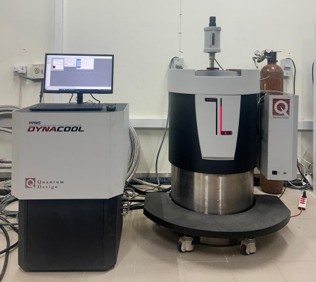

Physical Property Measurement System (PPMS)

Physical Property Measurement System (PPMS)

ppms

Make: Quantum design

Model: 6000

Capabilities

Specifications

PPMS Experimental Parameters-
  • Operational Modes Currently Available: Electrical Transport (AC and DC), Vibrating Sample Magnetometer (VSM)
  • Temp. Range - 6.0 K to 370 K, Magnetic Field - 0 to 9 Tesla
ETO (Electrical Transport Option)
Four Probe or van der Pauw Geometry
DC Resistance:
  • Range: 10 µΩ to 5 MΩ
  • Current Range: 2 nA to 8 mA
  • Frequency: 5 Hz Square Wave
  • AC Resistance (ETO)
  • Range: 10 µΩ to 10 MΩ
  • Frequency Range: 0.1 to 200 Hz
  • Current Amplitude Range: 10 nA to 100 mA
VSM
Operational Range:
  • Temp. Range - 6.0 K to 370 K,
  • Field- 0 to 9 Tesla
  • Experiment: Moment vs Magnetic Field & Moment vs Temperature
Coil Set Dimensions (Small Bore)
  • Bore Diameter: 6.3 mm
  • Coil Separation: 9 mm


Application:

  • ETO measurement can provide the resistance and resistivity (if geometry is known) of materials over a wide range of temperatures and magnetic fields, allowing for the study of phenomena like magnetoresistance and the effect of temperature on electrical properties.
  • VSM measurement can provide the magnetization, magnetic susceptibility, and other magnetic properties of bulk, nanoparticles and thin film materials, which is important for understanding magnetic reversal processes, designing new magnetic devices, and characterizing magnetic phenomena in materials

Sample Requirement

  • Powder sample: 5 mg to 20 mg
  • Solid sample: 2 mm × 4 mm × 2 mm pellet
  • Thin film (Standard substrates cut into 4 mm × 4 mm and a thickness of 2 mm or less)

Charges

Academics(Rs)+18% GST Industry(Rs)+18% GST
 Rs. 2000 (for 8 hrs ) Rs. 4000 (for 8 hrs)

Publications

Content will be updated soon..

Contact Us

Name: Dr Jayita Sarkar

Designation: Snr Scientific Officer

Phone:0291 280 1343

Email:jsarkar[at]iitj[dot]ac[dot]in

Name: Dr Saloni Sharma

Designation: Scientific Officer

Phone:0291 280 1347

Email:saloni[at]iitj[dot]ac[dot]in

Name: Mr lalit Mohan

Designation: Junior Assistant

Phone:0291 280 1344

Email:
